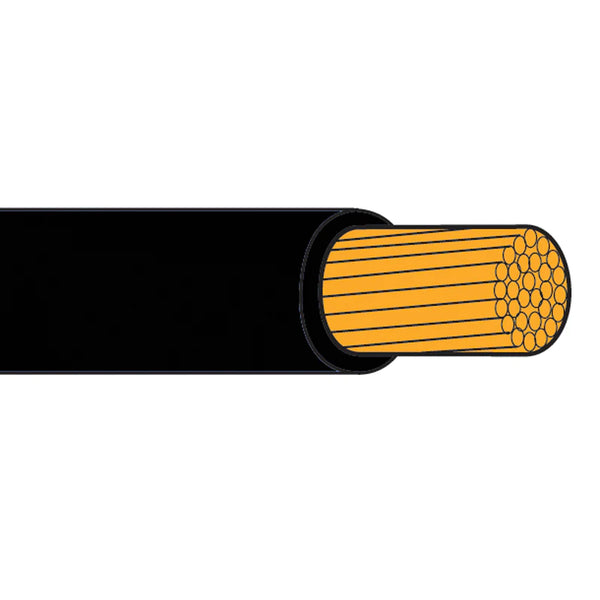

High temperature thin wall low voltage wiring cables suitable for use in the automotive & marine applications Plain Copper Conductors - PVC Insulated
Conductor spec - 84/0.30
Conductor cross section (mm) - 6.0
Nominal current rating (amps) - 50.0
Maximum overall diameter (mm) - 4.3
Maximum Watts (12 volts) - 600
Maximum Watts (24 volts) - 1200
Maximum Voltage - 60V
Temperature range - -40¡C to +105¡C
Resistance per metre at 20¡C (Ohms) - 0.00314
